Network & Distribution

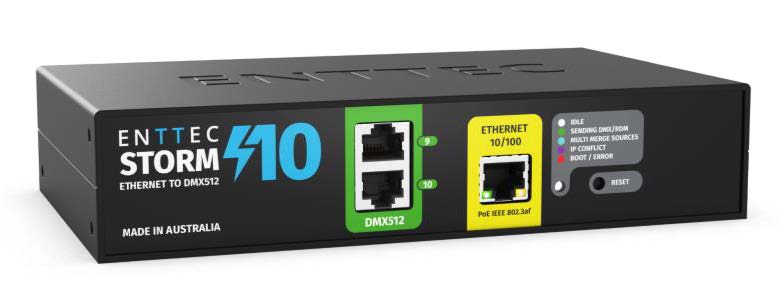

Storm10 - Compact 10 universes DMX over Ethernet to DMX/RDM Converter

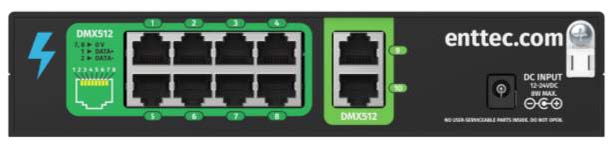

ENTTEC’s STORM10 is a compact installer-grade Ethernet-DMX to DMX/RDM gateway designed to make controlling DMX lights over Ethernet simple. The STORM10 converts Art-Net, sACN & ESP eDMX protocols into up to 10 Universes of DMX/RDM to your lighting fixtures. In combination with 1 ethernet input, STORM10 is packed with 10 rear DMX/RDM output ports alongside installer-friendly two forward-facing service ports duplicating Port 9&10 offering as many outputs as possible within a 1U half-width rack device. The STORM10 converts fully compliant DMX using RJ45 outputs, Cat5e/Cat6 cable can be wired to a standard DMX plug either locally to the STORM10 or at the first fixture. Using RJ45 cables instead of DMX cable proves cheaper and more efficient especially on long term installations. The STORM10 can be powered by either PoE or a 12-24V DC jack input. Its front LED indicators showing the status and connectivity of each unit. All intuitive configuration management including firmware updates are conveniently accessible through its localhost web interface making installations both simple and fast. The STORM10 allows merging of up to two Ethernet-DMX sources via HTP or LTP methods, providing additional flexibility without the need for other hardware.
Pixelator Mini - 16 Universe eDMX to LED Pixel Protocol Converter

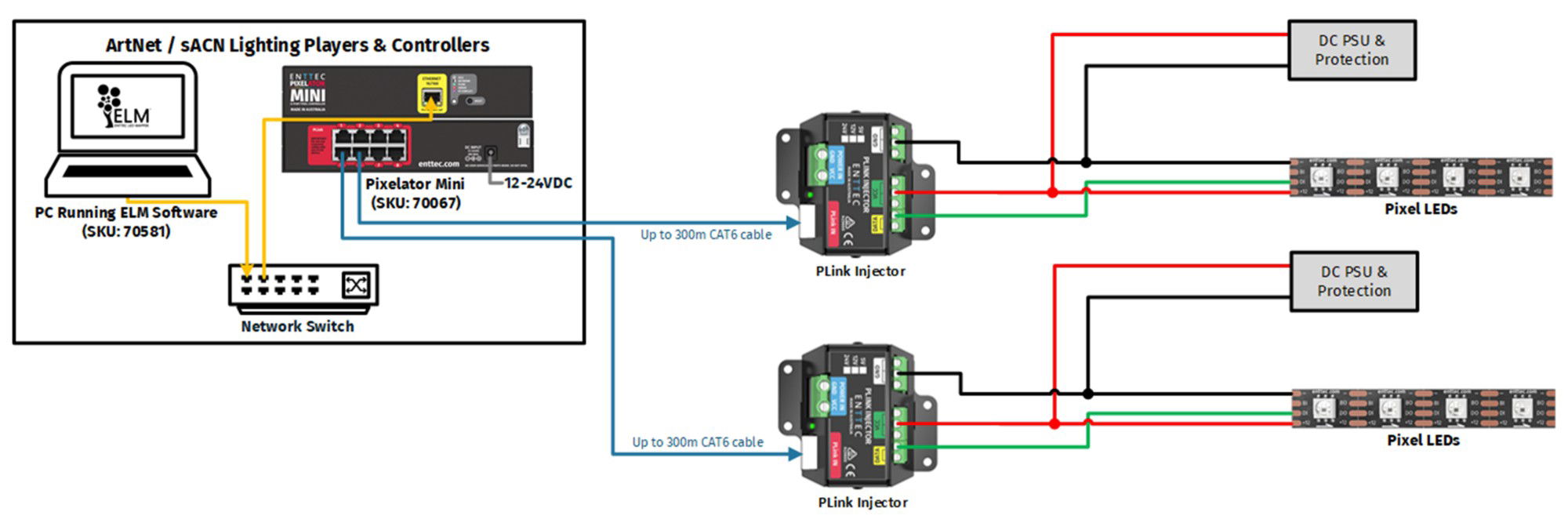

ENTTEC’s PIXELATOR MINI is an 8-port Ethernet pixel converter that forms the head end of the PLINK control system. Each PIXELATOR MINI can receive up to 16 Universes of DMX over Ethernet and converts them to ENTTEC’s proprietary PLINK protocol to be connected to Plink devices, (up to 2 universes of pixel control data is sent per port). Each PLINK port can send data 300m using CAT6 cable to ENTTEC devices that receive PLINK data. The PIXELATOR MINI is powerful enough to control up to 8,192 channels (2,730 RGB Pixels) with perfect synchronization and high refresh rate across all eight outputs. The PIXELATOR MINI can be configured to receive sACN, ArtNet, ESP or Kling-Net, then set to output a wide range of output pixel protocols using its intuitive web interface. Mount the PIXELATOR MINI in any location using the accessories included in the box from rack, to surface, to DIN. It can be powered using either PoE or the DC Jack PSU that comes in the box. Controlling LED pixels, dots and digital strips has never been easier! Depending on your project, you can partner the PIXELATOR MINI with an indoor or outdoor PLINK INJECTOR compatible with the pixels you’ve installed. Alternatively, pair it with our CVC4 AUTO-ADDRESSING CONSTANT VOLTAGE LED DIMMERS - to create large LED control systems with minimum configuration.

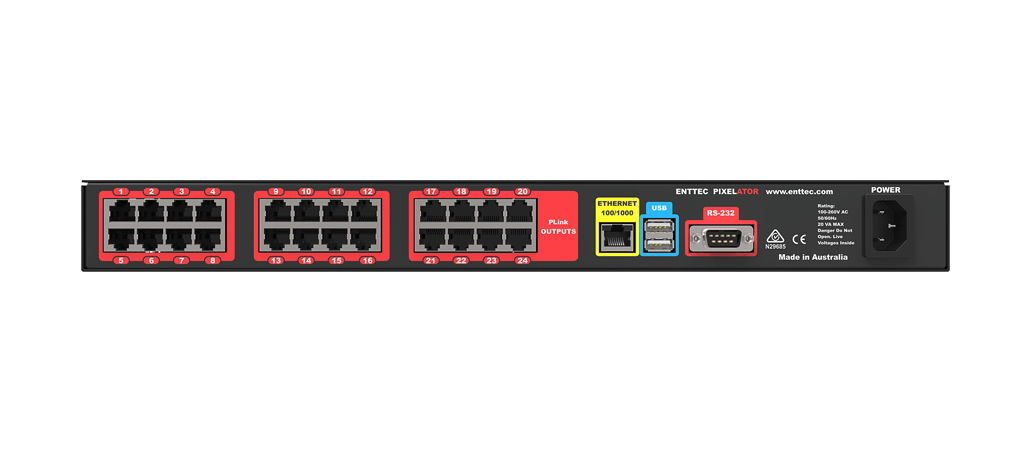

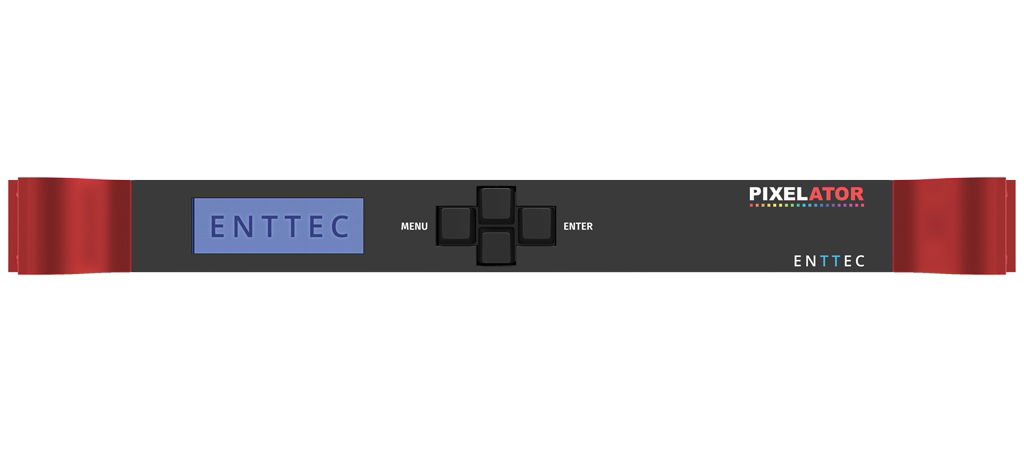

Pixelator - 48 Universe eDMX to LED Pixel Protocol Converter
ENTTEC’s PIXELATOR is a 24-port Ethernet to pixel controller. Using ENTTEC’s PLINK protocol, each port provides data to ENTTEC’s PLINK INJECTORS which can output up to 2 Universes each. The Pixelator can send data up to 24,576 channels (8,192 RGB pixels) with perfect synchronization across all eight of its outputs. The PIXELATOR can receive sACN, Art-Net & ESP and output a wide range of SPI pixel output protocols. All configuration is undertaken using an intuitive web interface. Controlling LED pixels, dots and digital strips has never been easier. ENTTEC’s PLINK protocol can transmit up to 1024 channels (2 Universes) over a 300m distance using Cat5e/Cat6 cable to each ENTTEC PLINK INJECTOR. This allows for control of up to 340 RGB or 256 RGBW pixel per output. This satellite system provides great flexibility, PIXELATOR since all data conversion is processed on the PIXELATOR, the PLINK INJECTOR is kept as compact as possible. Depending on the application, choose between the indoor or outdoor IP PLINK INJECTOR, ensuring that the voltage is compatible with the pixels and power supply which is installed locally to the PLINK INJECTOR.
DIN Ethergate - 2 Universe DMX over Ethernet to DMX/RDM Converter

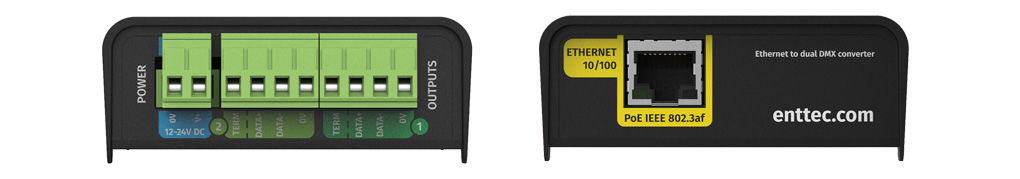

ENTTEC’s DIN ETHERGATE is a robust and reliable installation grade DMX node engineered to take any architectural, commercial or entertainment project to the next level. With 2 universes of bi-directional eDMX -> DMX conversion and ArtRDM support, the DIN ETHERGATE is a flexible, cost-effective method to connect physical DMX devices to your network infrastructure. The configuration as well as the firmware updates are managed through the localhost web interface to simplify commissioning from any computer on your network. The DIN ETHERGATE’s slim, 4 DIN-module electrically insulated housing supports TS35 DIN and surface mounting for fast installation. Pluggable terminal blocks with inbuilt termination line make wiring simple. The Power over Ethernet (PoE) featuring DIN Ethergate reduces the number of cables and can be deployed remotely without the need for a local power source close to the device.
