Lighting Drivers

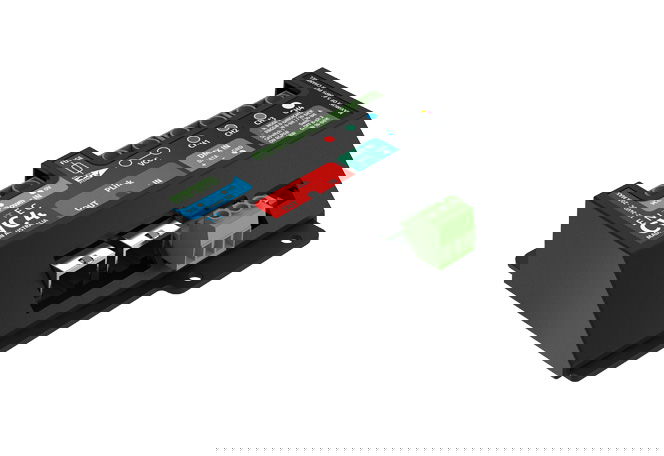

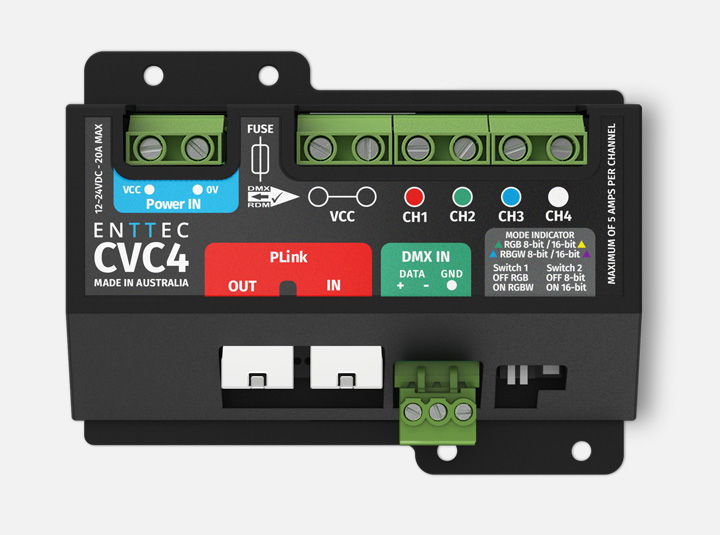

CVC4 - 4 Channel Constant Voltage LED Dimmer

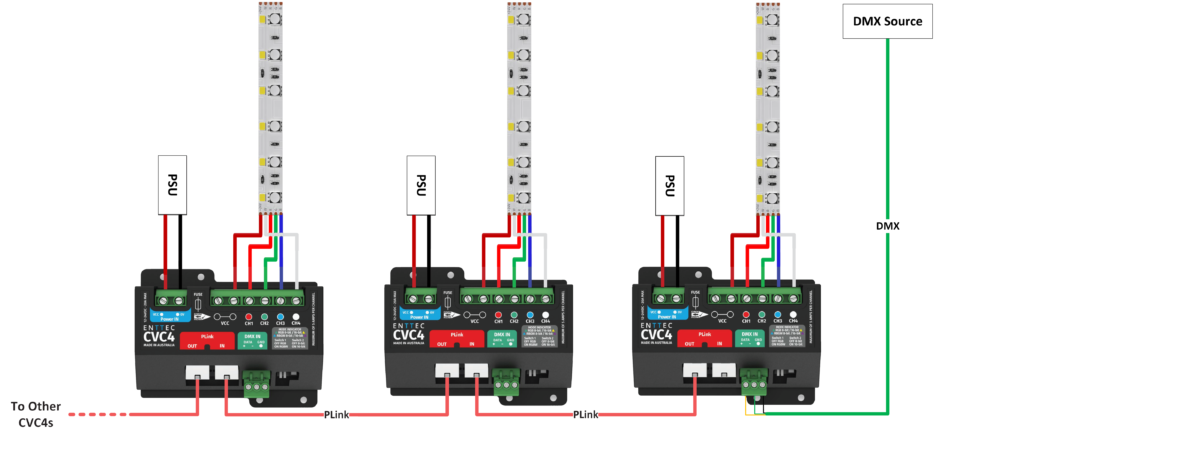

Designed and made in Australia, the CVC4 is the next evolution of the ENTTEC constant voltage LED dimmer, building upon the CVC3 and DIN-LED4PX constant voltage led driver. Capable of controlling up to 20A across its four 5A channels at either a 16- or 8-bit resolution, the CVC4’s ultra-smooth dimming, auto-addressing functionality and simple mode selection make it one of the most comprehensive yet versatile LED dimmers imaginable. With its rugged, black ABS body featuring in-built surface-mount tabs, or an attachable TS35 DIN rail adaptor, it’s fast, easy and versatile to install. The CVC4’s solid-state, fanless design also means it’s virtually silent when in operation. A user-serviceable blade fuse to protects against short circuits., whilst it also has the ability to detect temperature and limit the LED output to reduce overheating. The CVC4 has been engineered to bring the ultimate in installer-friendly flexibility and fast deployment when constructing a constant voltage LED strip project. Features: Dimming capacity of up to 5A per channel. 12-24V input (20A maximum). 1KHz PWM signal refresh rate. Support daisy chaining of ENTTEC’s autoaddressing P-Link Protocol over Cat6 cable. DMX/RDM input through pluggable rising clamp connector. RDM identification and addressing functionality. On board conversion from DMX to P-link. Attachable TS-35 Din Rail mounting clip. Status LED and DIP switch to toggle between RGB/RGBW and 8-bit/16-bit operating modes. User-serviceable blade fuse to protect against short circuits. Passive cooling with internal overheating protection. Compact design with integrated 4mm surface mounting holes.

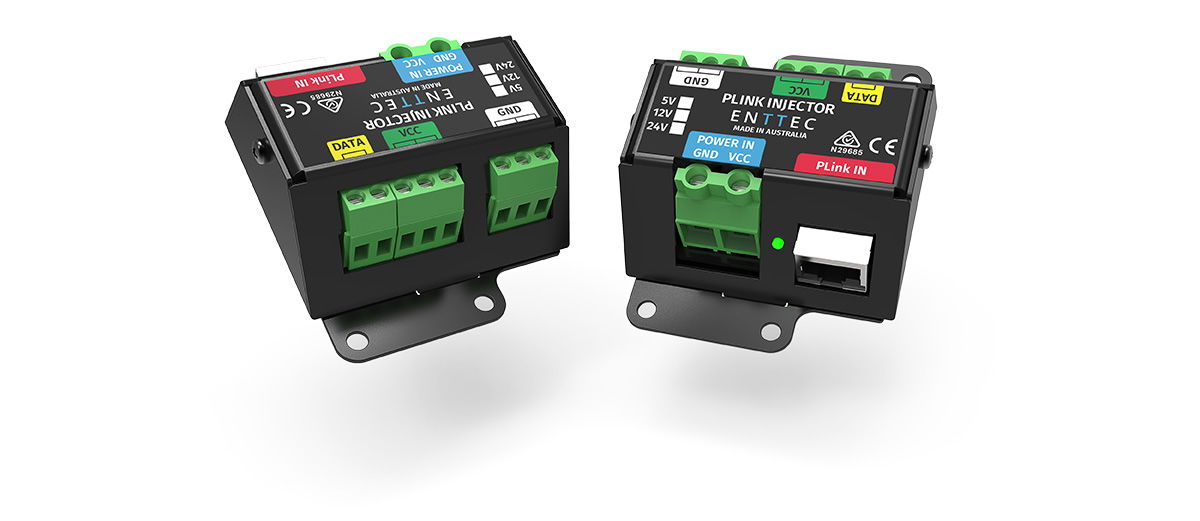

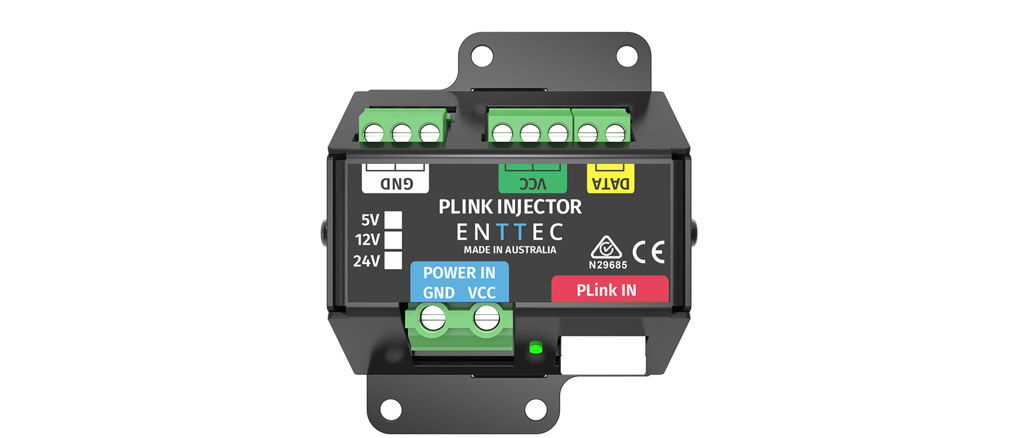

PLink Injector - LED Pixel/ Constant Voltage Extender

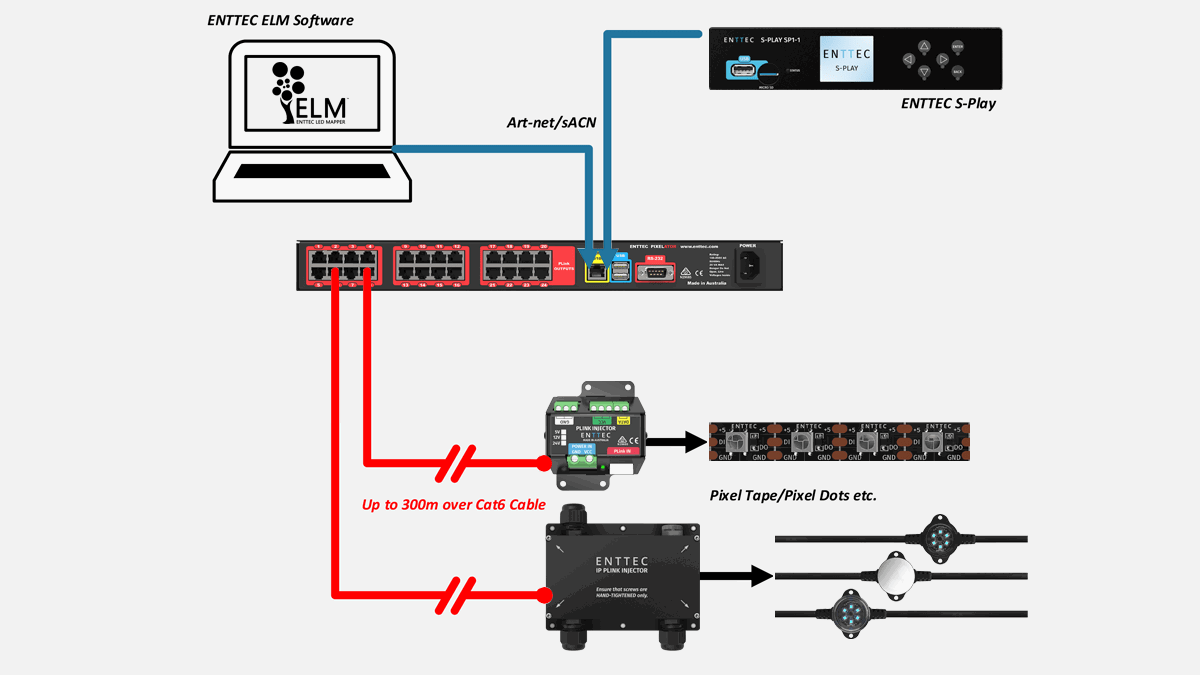

The PLink Injector has been engineered to work as part of an ENTTEC Pixelator Series set up to make it fast, easy and affordable for you to control LED pixel strips or pixel dots over long distances. The injector features an external DC power supply as well as high-power screw terminal connectors. In addition, they are ideal for custom shape pixel LED installations and their scalable design is perfect for large projects. You can choose from the 5V or 12-24V options depending upon your layout. Then simply re-inject power from an external source, and you’re away! Depending on your applications, our Plink Injector comes also in a rugged IP66-rated version, ideal for extreme weather conditions and outdoor installations. Features Each PLink port can drive up to 340 RGB individual pixels (2 DMX universes) The PLink is designed for use with the Pixelator system External DC power supply Data extensions up to 300 meters over Cat5/Cat5e/Cat6 cable Small, light and easy to hide design Scalable design for large projects Ideal for custom shape pixel LED installations High power screw terminal connectors Easy wiring using Cat5/Cat5e/Cat6 standard connections

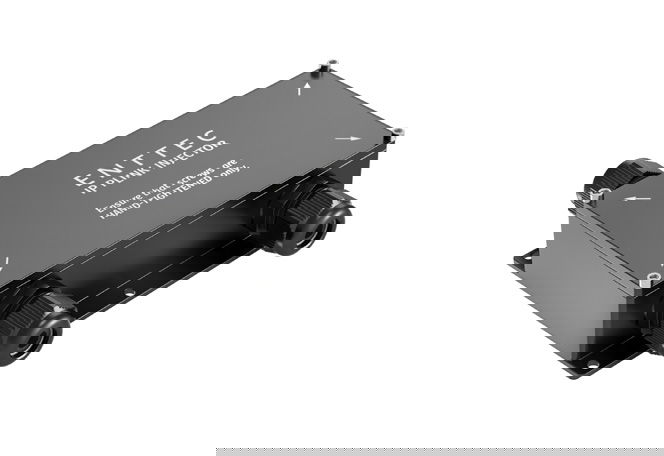

IP PLink Injector - Waterproof LED Pixel/ Constant Voltage Extender
The IP PLink Injector is a waterproof pixel data injector, engineered to work as part of an ENTTEC Pixelator Series setup making it fast, easy and affordable for you to control LED pixel strips or SPI LED pixel dots over long distances outdoors. With no local configuration needed, it’s capable of receiving up to 2 Universes of PLink data from an ENTTEC Pixelator Series controller and converting it to SPI data used for auto-addressing pixel LEDs. Inside the housing, high current rising clamp connectors and an RJ45 port make connection simple. The IP PLink can be powered from the same supply that feeds your LED dots with either 5V or 12-24V operating voltage (selectable with an internal cable jumper). The flexibility of the Pixelator system combined with the IP PLink’s robust, anodized aluminium body, makes it fast to install and easy to use – a scalable system perfect for large outdoor projects. Our PLink Injector is also available as an IP20 indoor variant at either 5V or 12-24V. Features Each IP PLink Injector can control up to 340 individual RGB 8-bit or 256 RGBW pixels (2 DMX Universes) when connected to a Pixelator family controller. The IP Plink can be powered from the same PSU as your LED pixels with an operational voltage range selectable with a jumper to be either 5V or 12-24V DC. Data extensions up to 300 metres over Cat5/Cat5e/Cat6 cable between the Pixelator and IP PLink (maximum 3m cable length from the IP PLink to data Compact, robust, easy-to-hide design constructed from machined 6061 aluminium with a black anodized finish. -10°C to 65°C operating temperature (14°F to 149°F). IP66 Ingress protection. Scalable design for large projects. 10A rated current throughput. Watertight glands x 3 (∅4mm-8mm). Easy wiring using internal rising clamp screw terminals and RJ45 connectors. 3-year warranty.
