Lighting Controls

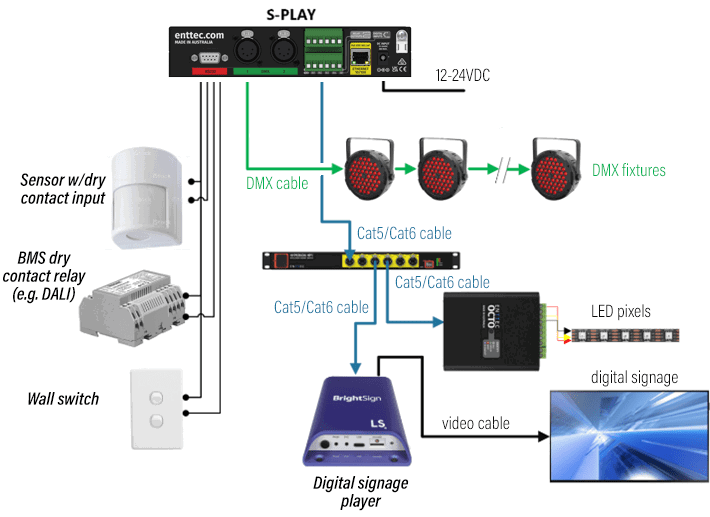

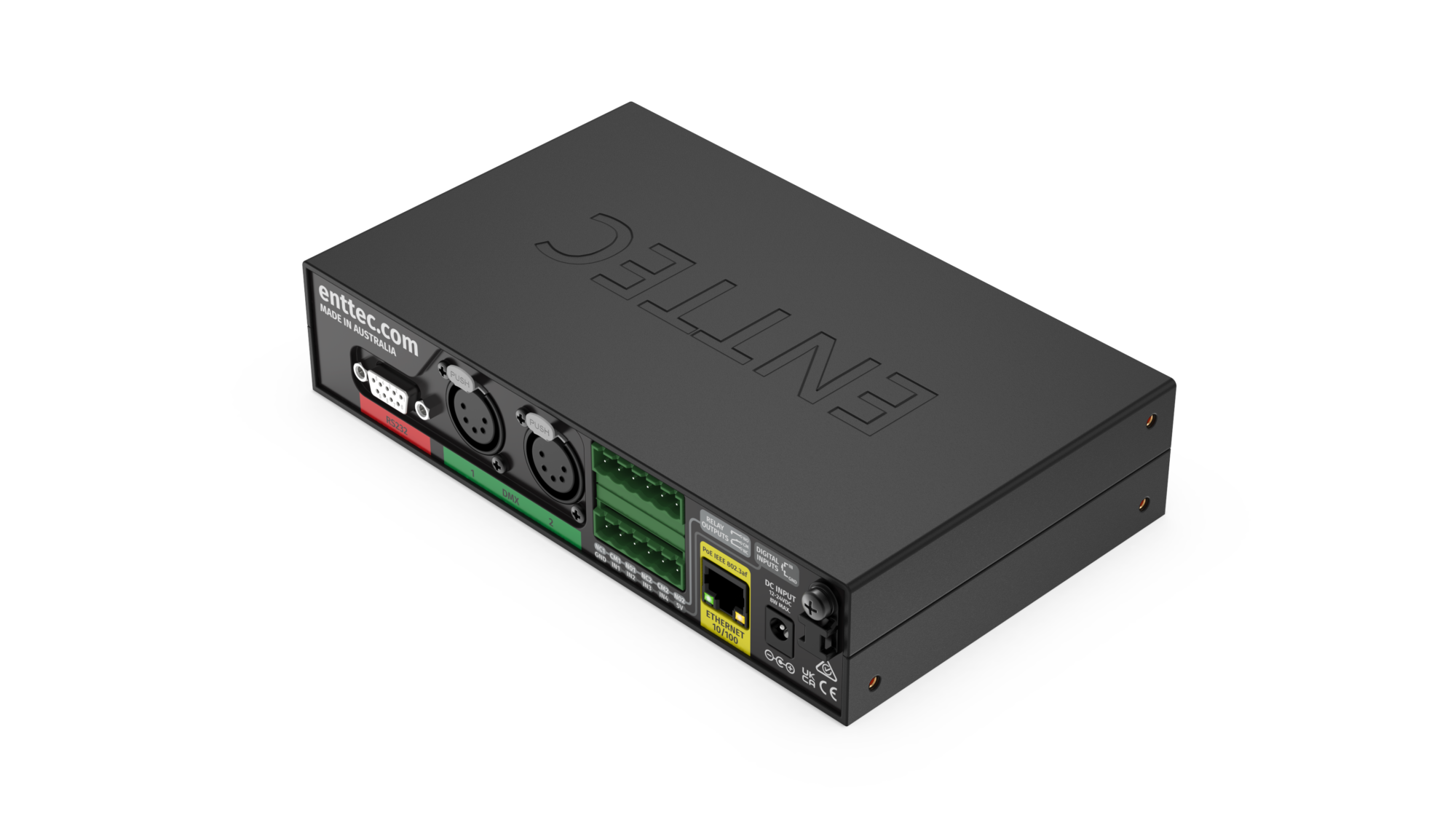

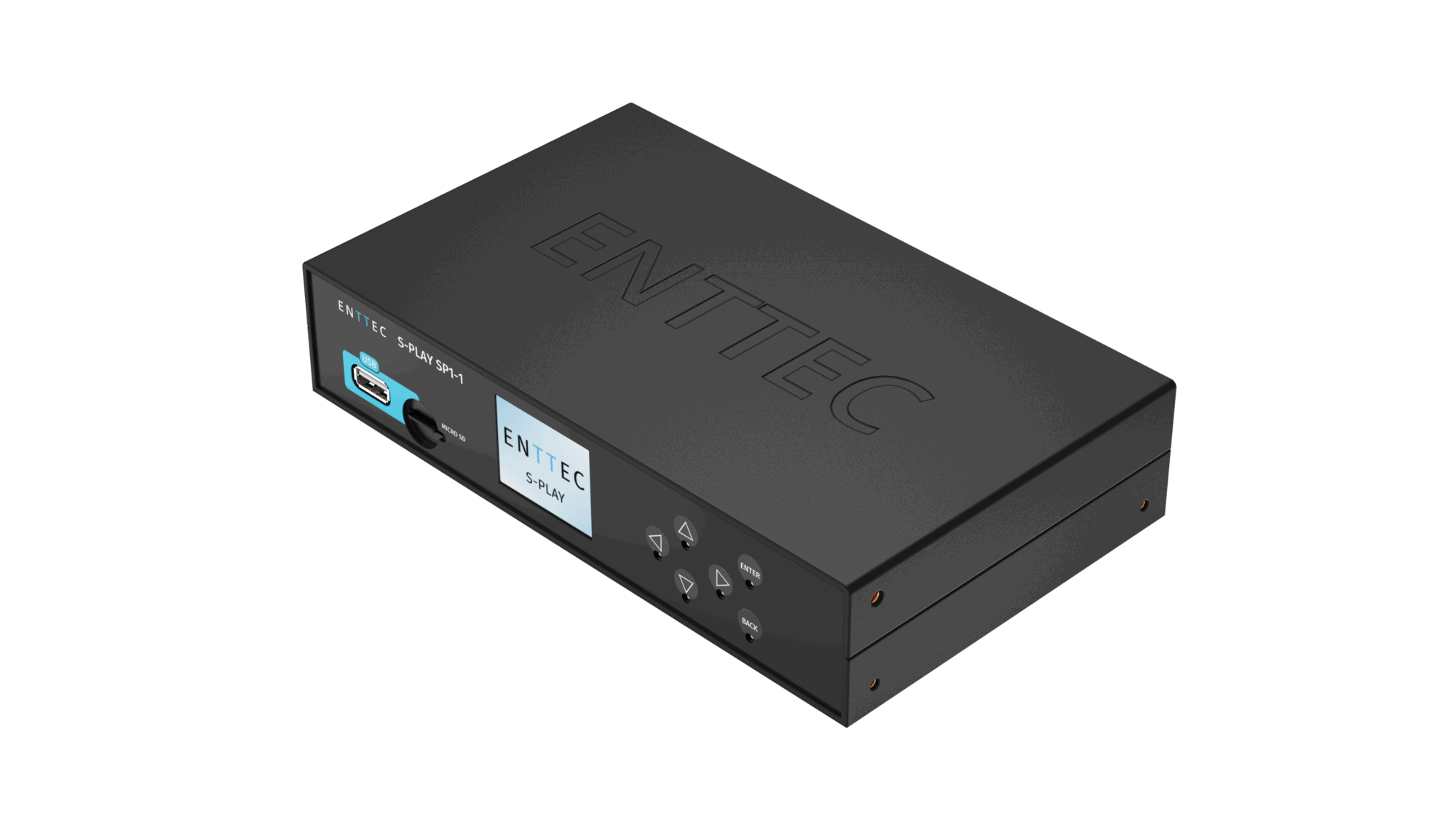

S-PLAY - Smart Light Show Controller
Features Reliable, compact solid state design: the perfect tool for installations. In-built controls to create, record and play cues. Web based scene, gradient generator and FX engine allowing full show creation to be carried out on the S-play itself. Internal memory (8GB) supporting over 10 hours of 32 universe recording at 44FPS (plug in an external Micro SD card to increase this recording size up to 64GB). Up to 32 Universes of Art-Net and sACN recording & playback. Monitor DMX values when recording cues. Variable Art-Net/sACN refresh rate (60FPS max.). Four digital inputs to trigger device from external sources. Two-Universe physical DMX input or output. Two relay outputs to control external devices. Create playlists from dynamic, static and internal effect cues. Send options: RS232, UDP, OSC, Art-Net, sACN, DMX & Digital Inputs. Remote trigger options: RS232, UDP, OSC, Art-Net, sACN, DMX & Digital Inputs. Create custom web interfaces.

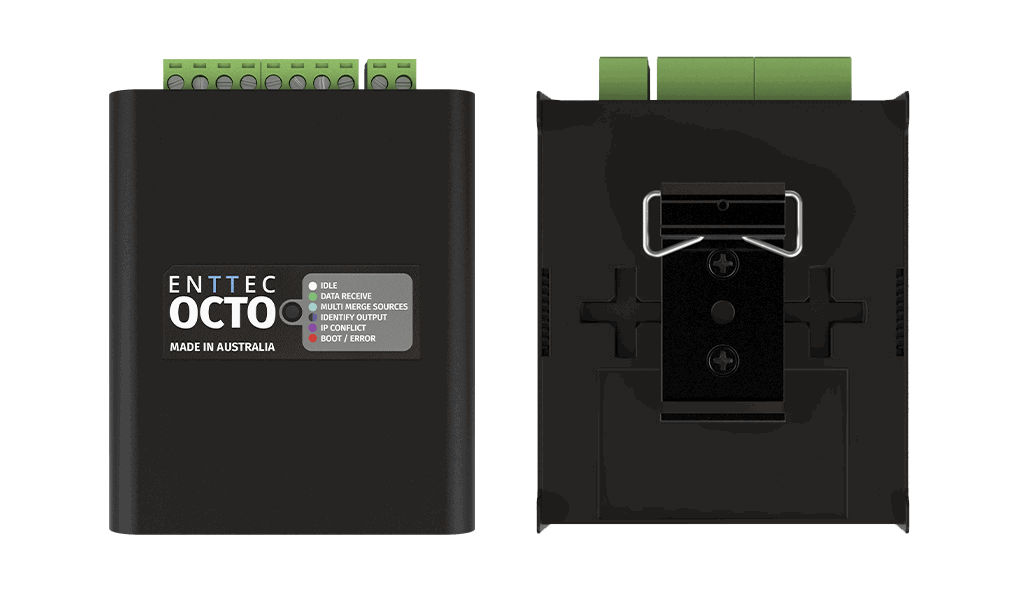

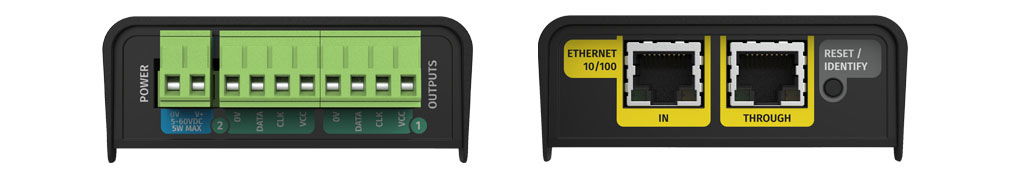

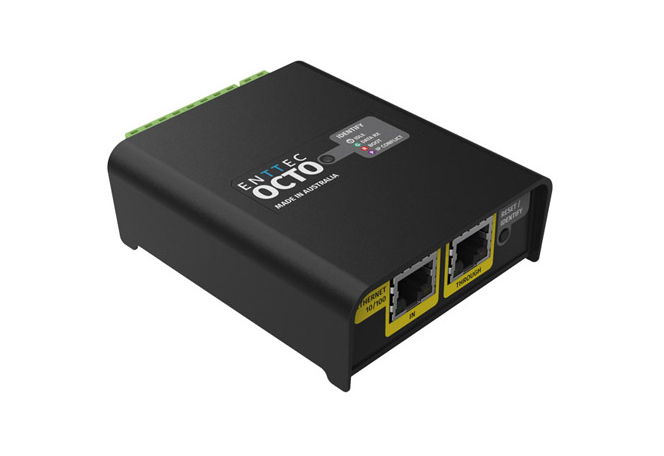

OCTO MK2 - LED Pixel Controller
ENTTEC’s OCTO MK2 is a robust and reliable installation grade LED controller engineered to take any architectural, commercial or entertainment project to the next level. With 8 universes of Ethernet-DMX to pixel protocol conversion and network chaining between devices, the OCTO MK2 allows for fast deployment of LED strips and pixel dot systems. The OCTO MK2 is packed with installer-friendly features such as an identify button to check correct wiring, wide input voltage range (5-60VDC) and the flexibility to power it directly from the same source as the LED pixels. All contained within a slim electrically isolated 4 DIN form factor. Furthermore, the newly released OCTO MK2 not only supports more than 20 pre-listed pixel output protocols below but also allows creation of custom pixel protocols (criteria apply, see user manual). All firmware updates and intuitive configuration management are conveniently accessible through its localhost web interface.
